Suction Cup Electromagnet (Lifting Electromagnet / Electromagnetic Suction Cup) I. Product Introduction 1. Basic Definition The suction cup electromagnet, often referred to as the electromagnetic suction cup or suction cup electromagnet, is an adsorption-type electromagnetic actuator. When powered on, a strong magnetic force is generated on the end face, attracting ferromagnetic metal workpieces; when powered off, the magnetic force disappears, and the workpiece detaches. It is divided into DC suction cup electromagnets (small) and large electromagnetic suction cups for lifting purposes, with small DC suction cup electromagnets commonly used as industrial accessories.
Core principle: When a direct current is passed through the coil, the iron core generates a concentrated magnetic field, forming a magnetic circuit on the suction cup's working surface to adsorb ferromagnetic materials. After the power is turned off, the magnetic field disappears, and the adsorption force disappears as well. Some models exhibit residual magnetism, retaining a small amount of residual magnetic force after power is turned off.

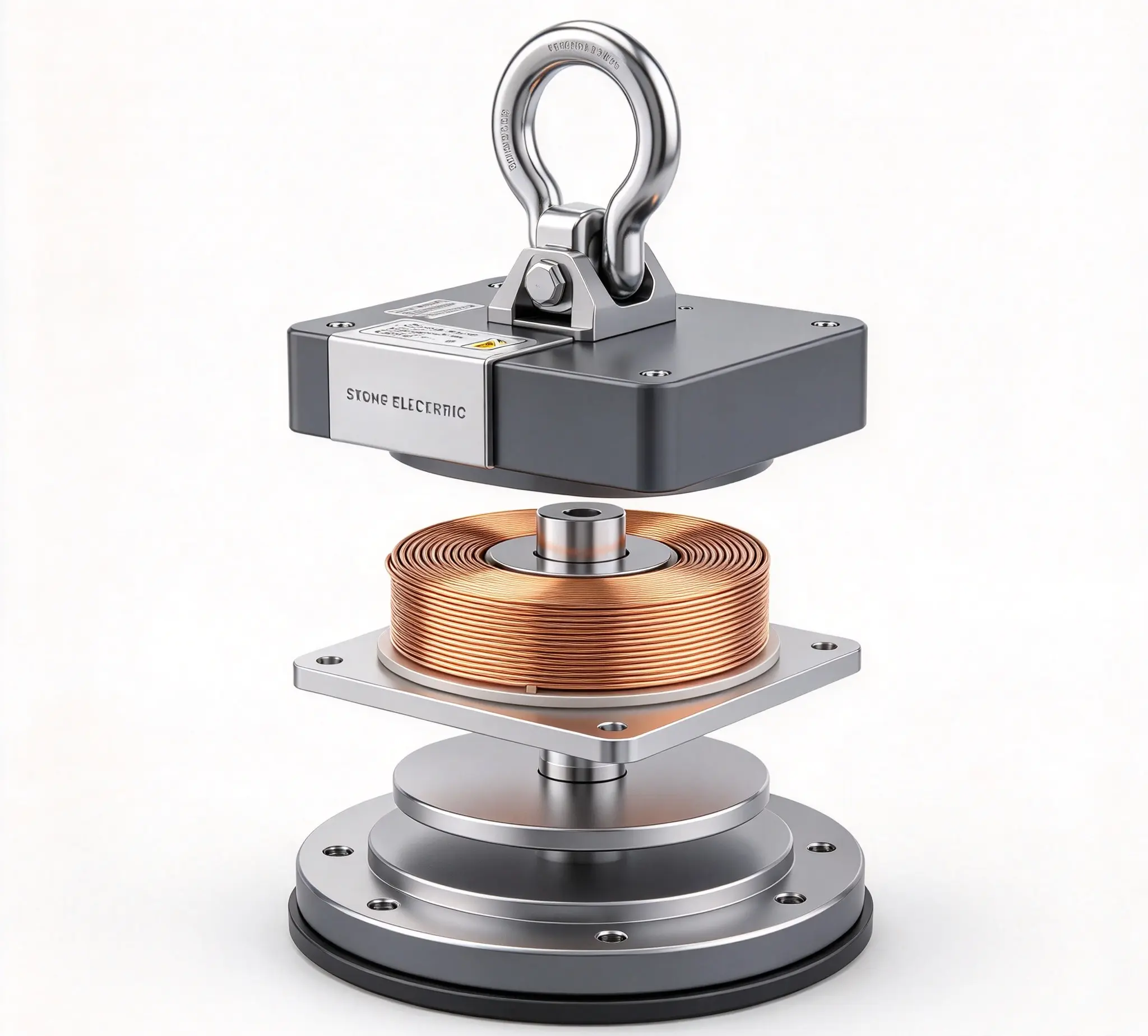

2. The main structure includes an enameled coil, an iron core (suction cup body), a shell, an insulating frame, and leads. Some large suction cups are equipped with a heat dissipation structure and a protective shell.
3. Product Features: The adsorption surface is flat, with suction concentrated on the end face, suitable for planar adsorption of magnetically conductive steel materials. The suction is stable, with a stable adsorption force under rated voltage and good fit conditions. Installation is simple, with mounting holes reserved on the back for convenient fixation. It requires continuous power to maintain suction, and the material will be released when the power is cut off. The coil will heat up after prolonged power-on. It can only adsorb magnetically conductive materials such as iron and steel, and cannot adsorb copper, aluminum, and stainless steel (non-magnetic).
4. Key selection parameters: rated suction force, operating voltage (DC5V/12V/24V are most commonly used, and there are also AC models for large-scale applications), external dimensions (mostly round, but also square suction cup electromagnets), diameter and thickness of the adsorption surface, power continuity rate (ED%), operating ambient temperature. Note: The premise for suction force testing is that the workpiece is flat, gap-free, and made of low carbon steel; if the workpiece is thin, rusty on the surface, or has gaps, the actual suction force will decrease.
II. Industry Applications: Suction cup electromagnets utilize end-face adsorption to grip metal workpieces, and are widely used in scenarios such as fixation, handling, and tooling clamping
Automated Fixture: Machine Tool Fixture, Automated Jig, Adsorption Steel Plate Positioning; Material Handling: Small Workpiece Suction, Robot Material Handling; Large Lifting Suction Cups for Steel Plate Lifting in Steel Mills and Scrap Yards; Warehouse Sorting Equipment: Metal Material Sorting, Small Feeding Equipment; Security and Access Control: Electromagnetic Door Holder, Fire Door Electromagnetic Release Device; Testing Instrument: Metal Fixing, Experimental Fixture; Mechanical Equipment: Small Metal Adsorption Fixing, Marking Machine/Engraving Machine Workpiece Fixing.
III. Frequently Asked Questions (FAQ) Q1: Does a suction cup electromagnet still have magnetic force after it is powered off?
A: After the power is turned off, most of the magnetic force of a regular suction cup electromagnet disappears, leaving a small amount of residual magnetism. Thick steel workpieces may be slightly attracted, and a solution with a demagnetization circuit can be chosen to reduce the residual magnetism.
Q2: Can it adsorb stainless steel, copper, and aluminum?
A: No, it can only adsorb ferromagnetic materials such as iron and low-carbon steel; 304 stainless steel, copper, and aluminum are non-magnetic and cannot be adsorbed.
Q3: What causes the suction force to fail to reach the labeled value?
A: The rated suction force is measured under standard test conditions (flat mild steel, full fit); the presence of gaps, too thin workpieces, oily or rusty surfaces, and insufficient voltage will all reduce the actual suction force.
Q4: Can a suction cup electromagnet be continuously powered for an extended period of time?
A: Look at the power-on duration rate, ED%. Models with a low duration rate should not be powered on for extended periods, as they are prone to heating up; models with a high duration rate have better heat dissipation and can support longer power-on periods, but they will still experience a temperature rise.
Q5: Can we customize suction cup electromagnets?
A: Support non-standard customization, with adjustable shape (round/square), thickness, suction force, lead wire method, and mounting hole position.
